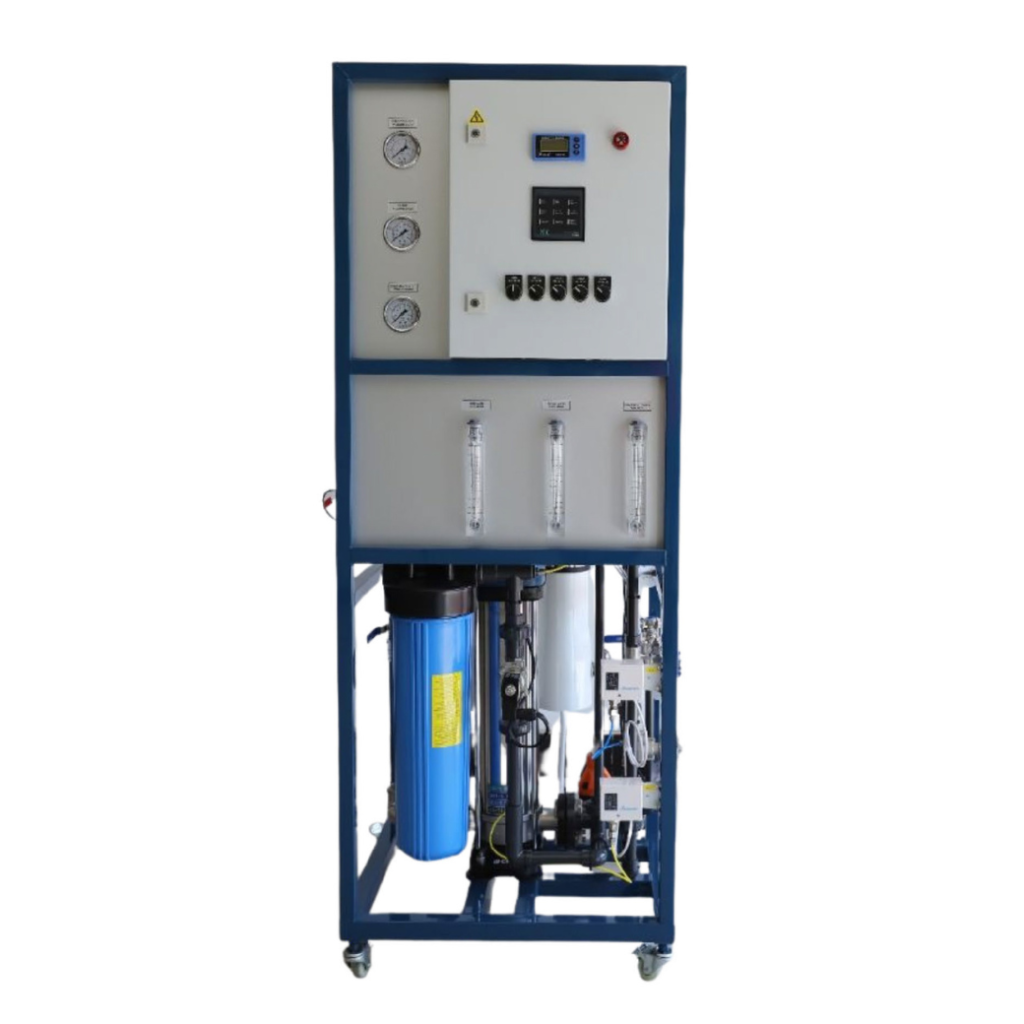

Kinetico Purecleer COMPACT HL

Model	Flow rate (L/h)	24-hour production (L)
COMPACT HL 400	400	9,600
COMPACT HL 600	600	14,400
COMPACT HL 800	800	19,200
COMPACT HL 1000	1,000	24,000
COMPACT HL 1200	1,200	28,800

Kinetico Purecleer COMPACT HL combines professional direct-flow reverse osmosis with 4040-format membranes. Its 400 / 600 / 800 / 1 000 / 1 200 L/h production range provides 9 600 / 14 400 / 19 200 / 24 000 / 28 800 L over 24 hours at the stated hourly rate.

Production flow rate
- 400 L/h
- 600 L/h
- 800 L/h
- 1000 L/h
- 1200 L/h
Manufacturer
Width
Depth
Height
Water temperature
Electrical supply
Installed power
Maximum operating pressure
Minimum dynamic inlet pressure
Maximum feedwater salinity
Feedwater connection
Permeate connection
Reject connection
Salt rejection
Membrane format
Maximum adjustable recovery
Feedwater pH
Maximum feedwater chlorine

Documents

Kinetico Purecleer COMPACT HL — Technical data sheet (EN, 24h).pdf

Up to 1,200 L/h in a shared frame design

The membranes separate dissolved salts from the feedwater, with a manufacturer-stated salt rejection of 99%. The models in this series share the same frame dimensions; membrane count and production distinguish the variants. Electronic pump control is included. Recovery is adjustable up to 75%, depending on feedwater and operating conditions. The Purecleer blending kit is an optional accessory, supplied separately.

Product strengths

4040 membranes

2–6 membranes according to model, with 99% salt rejection.

One frame, several capacities

1 682 × 640 × 634 mm (height × width × depth) across the series.

Feedwater salinity

The series accepts feedwater salinity up to 3 500 ppm, within the operating limits listed below.

Technical specifications

Manufacturer technical specifications. The 24-hour volume corresponds to 24 hours of production at the indicated hourly flow rate.
Specification	COMPACT HL 400	COMPACT HL 600	COMPACT HL 800	COMPACT HL 1000	COMPACT HL 1200
Technology	Direct-flow reverse osmosis	Direct-flow reverse osmosis	Direct-flow reverse osmosis	Direct-flow reverse osmosis	Direct-flow reverse osmosis
Maximum feedwater salinity (ppm)	3,500 ppm	3,500 ppm	3,500 ppm	3,500 ppm	3,500 ppm
Production flow rate (L/h)	400 L/h	600 L/h	800 L/h	1,000 L/h	1,200 L/h
24-hour production volume (L)	9,600 L/24 h	14,400 L/24 h	19,200 L/24 h	24,000 L/24 h	28,800 L/24 h
Membranes	2 × 4040	3 × 4040	4 × 4040	5 × 4040	6 × 4040
Salt rejection (%)	99 %	99 %	99 %	99 %	99 %
Recovery rate	Adjustable up to 75%	Adjustable up to 75%	Adjustable up to 75%	Adjustable up to 75%	Adjustable up to 75%
Maximum operating pressure (kg/cm²)	19 kg/cm²	19 kg/cm²	19 kg/cm²	19 kg/cm²	19 kg/cm²
Minimum dynamic inlet pressure (kg/cm²)	2 kg/cm²	2 kg/cm²	2 kg/cm²	2 kg/cm²	2 kg/cm²
Feedwater temperature (°C)	3–35 °C	3–35 °C	3–35 °C	3–35 °C	3–35 °C
Feedwater pH	3–11	3–11	3–11	3–11	3–11
Feedwater chlorine (ppm)	< 0.1 ppm	< 0.1 ppm	< 0.1 ppm	< 0.1 ppm	< 0.1 ppm
Installed power (kW)	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW
Electrical supply	III 380 V · 50 Hz	III 380 V · 50 Hz	III 380 V · 50 Hz	III 380 V · 50 Hz	III 380 V · 50 Hz
Electronic pump control	Yes	Yes	Yes	Yes	Yes
Feedwater connection	1″ BSP female	1″ BSP female	1″ BSP female	1″ BSP female	1″ BSP female
Permeate connection	½″ BSP	½″ BSP	½″ BSP	½″ BSP	1″ BSP
Reject connection	½″ BSP	½″ BSP	½″ BSP	½″ BSP	1″ BSP
Dimensions H × W × D (mm)	1,682 × 640 × 634 mm	1,682 × 640 × 634 mm	1,682 × 640 × 634 mm	1,682 × 640 × 634 mm	1,682 × 640 × 634 mm

Manufacturer documents

Download the data sheet — PDF in English Visit the manufacturer’s page
