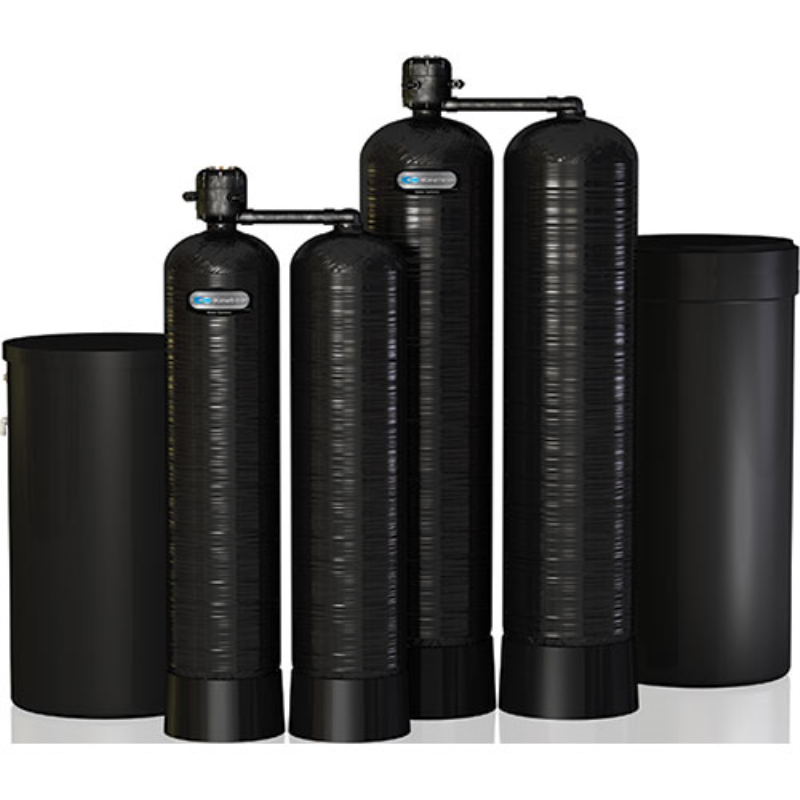

Adoucisseur d'eau KineticoPRO Commercial Plus Series

KineticoPRO CP Series

Model	Overdrive flow at ΔP = 1 bar (L/min)	Treatment unit height (mm)
CP213s OD	106	1,524
CP216s OD	132.5	1,822

A twin-tank water softener with a hydraulic control valve. The system uses the energy of flowing water to run its softening and regeneration cycles.

KineticoPRO

Modèles
- CP213s OD
- CP216s OD
Manufacturer
Application
- Immeuble collectif
- Industriel
- HoReCa
Système
- Duplex
Source d'alimentation
- Non-électrique

Documents

Datasheet_CP213_Metric_Commercial_Plus_Softener_Series_07.12.2024.pdf Datasheet_CP216_Metric_Commercial_Plus_Softener_Series_07.12.2024.pdf-p88.pdf Fiche Commerciale Kinetico_Gamme CP.pdf

Continuous soft water, powered by water

A twin-tank water softener with a hydraulic control valve. The system uses the energy of flowing water to run its softening and regeneration cycles.

The integrated meter follows actual water use and triggers regeneration according to demand. The second resin tank keeps softened water available while the other tank regenerates. On OD models, Overdrive places both tanks in service simultaneously. During regeneration, one tank continues to supply softened water. Standard and OD variants retain their own flow ratings.

Product strengths

Non-electric operation

The control valve works without an electrical connection or a programmable timer.

Twin-tank continuity

One tank remains available to supply softened water during regeneration.

Demand regeneration

The water meter links regeneration to water consumption.

Documented performance

The manufacturer document lists WQA certification for CP213s OD / CP216s OD: NSF/ANSI/CAN 61, 372 · CSA B483.1 · ASSE 1087.

View the source

Technical specifications

CP213s OD

Model	CP213s OD
Overdrive flow at ΔP = 1 bar	106 L/min
Overdrive flow at ΔP = 2 bar	151.4 L/min
Treatment unit dimensions (width × depth × height)	686 × 330 × 1,524 mm

CP216s OD

Model	CP216s OD
Overdrive flow at ΔP = 1 bar	132.5 L/min
Overdrive flow at ΔP = 2 bar	177.9 L/min
Treatment unit dimensions (width × depth × height)	838 × 406 × 1,822 mm

Manufacturer documents

CP213s OD — Commercial Plus Softener Series — 11160Q (Rev. 02.12.2025), F30 CP216s OD — Commercial Plus Softener Series — 11160Q (Rev. 02.12.2025), F32

Specifications

Technical specifications
Manufacturer	Kinetico

Others
Modèles	CP213s OD, CP216s OD
Application	Immeuble collectif, Industriel, HoReCa
Système	Duplex
Source d'alimentation	Non-électrique
